| Harley Davidson Fat Boy STD General Features | |
|---|---|
| Engine Type |
Milwaukee-Eight® 117 Custom
|
| Brakes |
Disc
|
| Gear Box |
6 Speed
|
| Fuel Tank Capacity |
18.9 L
|
| Tyre Type |
Tubeless
|
| Harley Davidson Fat Boy STD Standard Features | |
|---|---|
| Brakes | Disc |
| Pass Switch | |
| ABS | Dual Channel |
| CBS | |
| Ebs | |
| Body Graphics | |
| Shutter Lock | |
Vivid Black

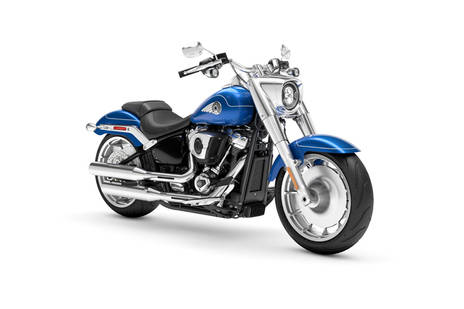

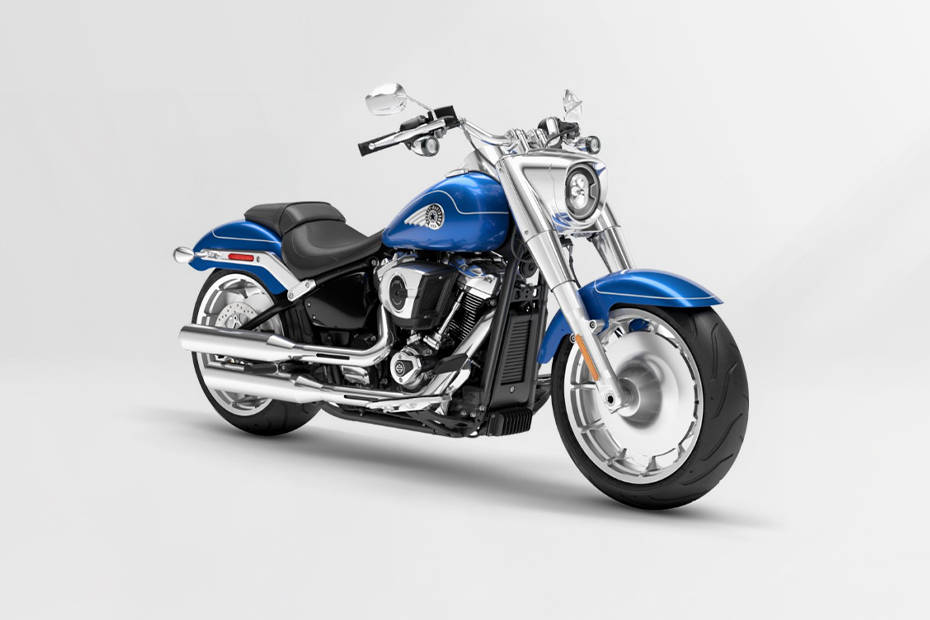

Blue Burst

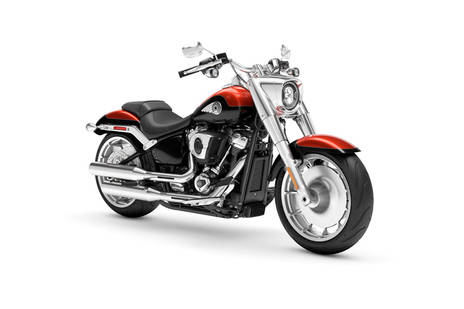

Whiskey Fire And Vivid Black

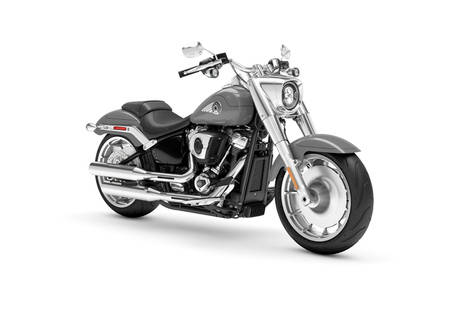

Billiard Gray
| Harley Davidson Fat Boy STD Engine & performance | |
|---|---|
| Engine Type |
Milwaukee-Eight® 117 Custom
|
| Displacement |
1923
|
| Mileage |
-
|
| Bore |
103.5 mm
|
| Stroke |
114.3 mm
|
| Compression Ratio |
10.3:1
|
| Maximum Power |
104.69 PS @ 5020 rpm
|
| Maximum Torque |
168 Nm @ 3000 rpm
|
| Starting |
Self Start Only
|
| Maximum Speed |
-
|
| Harley Davidson Fat Boy STD Transmission | |
|---|---|
| Gear Box |
6 Speed
|
| Clutch |
-
|
| Transmission Type |
Manual
|
| Harley Davidson Fat Boy STD Fuel | |
|---|---|
| Fuel Capacity |
18.9 L
|
| Supply System |
-
|
| Fuel Reserve |
-
|
| Fuel Gauge |
Digital
|
| Digital Fuel Gauge |
-
|
| Harley Davidson Fat Boy STD Brake | |
|---|---|
| Brakes |
Disc
|
| Front Brake |
Disc
|
| Rear Brake |
Disc
|
| Harley Davidson Fat Boy STD Tyre Size | |
|---|---|
| Tyre Size |
Front :-160/60-R18 Rear :-240/40-R18 |
| Radial Tyres |
Yes
|
| Harley Davidson Fat Boy STD Wheel Size | |
|---|---|
| Wheel Size |
Front :-457.2 mm, Rear :-457.2 mm |
| Wheel Base |
1650 mm
|
| Harley Davidson Fat Boy STD Chassis and Suspension | |
|---|---|
| Bike Suspension |
-
|
| Harley Davidson Fat Boy STD Frame | |
|---|---|
| Chassis/Frame |
-
|
| Harley Davidson Fat Boy STD Electrical | |
|---|---|
| Ignition |
-
|
| Battery Type |
-
|
| Head Lamp |
-
|
| Tail Lamp |
-
|
| Turn Signal Lamp |
LED
|
| Harley Davidson Fat Boy STD Exterior Dimensions | |
|---|---|
| Length | 2365 mm |
| Height | - |
| Width | 965 mm |
| Ground_Clearance | 125 mm |
| Saddle_Height | 675 mm |
| Kerb Weight | 315 kg |
| Total Weight | - |
| Weight_Carrying_Capacity | - |
| Chassis/Frame | - |
| Wheel Base | 1650 mm |
